【功率监测与控制系统DIY活动过程贴】OLED显示
本文介绍了基于 NUCLEO-F411RE 开发板、使用 SMT32CubeMX 软件快速生成工程，实现了通过硬件 I2C1 实现 4 线 OLED 屏显示数字、字符、字符串、汉字的项目设计，包括原理介绍、硬件连接、汉字取模、代码解析等流程。
项目方案
该项目通过 STM32CubeMX 构建 IIC 驱动的基本工程框架，使能 IIC ，之后在 oled.c 文件中定义相关显示函数，包括字符串、文字、数字等，在主函数中调用显示函数，实现 OLED 驱动与目标字符现实。
OLED

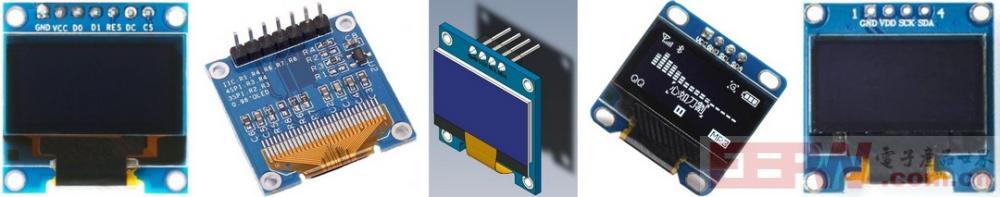

OLED（有机发光二极管）是一种自发光显示技术，不需要背光源，具有高对比度、薄厚度、广视角和快速响应等优点。OLED显示模块通常由OLED屏幕和驱动芯片组成，常见的驱动芯片是SSD1306
SSD1306 是一个单片 CMOS OLED/PLED 驱动芯片，支持 128x64 点阵显示。它内置了对比度控制器、显示 RAM和晶振，支持多种接口方式，包括 6800/8000 串口、I2C 接口和 SPI 接口。
显示原理
OLED 显示屏通过 SSD1306 驱动芯片控制，SSD1306 将显存分为 8 页，每页包含128个字节，总共128x64位。显示数据通过并行或串行接口传输到SSD1306，由 SSD1306 控制 OLED 屏幕显示。
详见：OLED显示模块（原理讲解、STM32实例操作） .
OLED显示
介绍了实现OLED屏幕显示信息的项目流程。

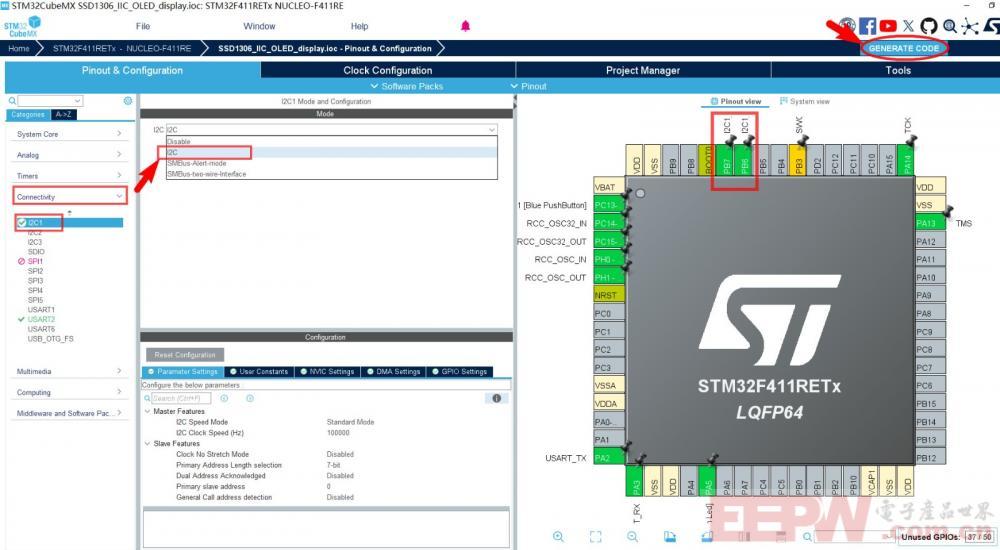

打开 STM32CubeMX 软件，新建 ST 板卡工程；
时钟配置：采用默认设置，系统时钟频率 84MHz；
Pinout & Configuration 标签下选择 Connectivity - I2C1 , 右侧 Mode 选择 I2C 使能 IIC 总线功能，此时 Pinout View 中 IIC 对应的管脚被标注为 I2C1 ；
配置完成后，进入 Project Manager 标签栏，进行项目命名、保存路径设置、编译器选择等操作；
点击 Generate Code 按钮，使用 STM32CubeIDE 或 Keil 打开目标工程；
编译工程，0 error, 0 warning .
硬件连接
PB7 ---- SDA (OLED)
PB6 ---- SCL (OLED)

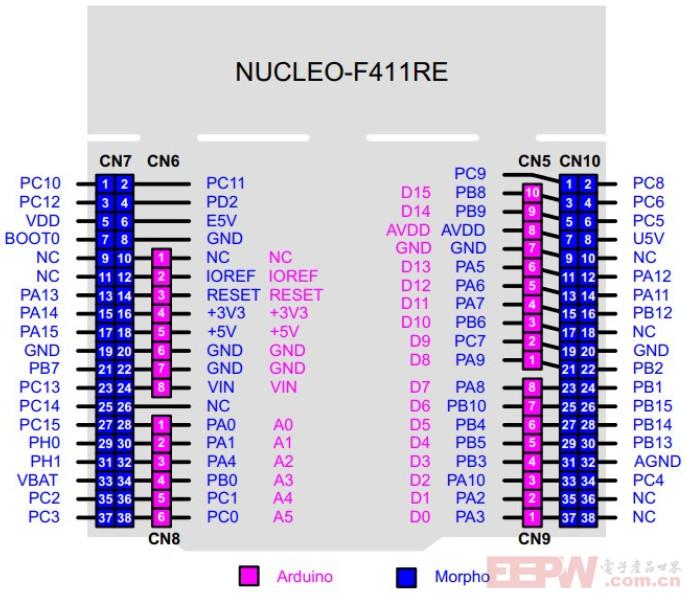

NUCLEO-F411RE 排针布局和定义
汉字取模

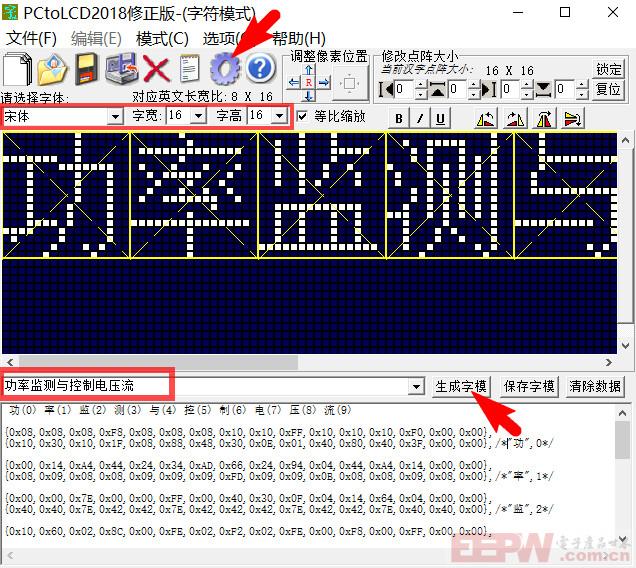

下载 并运行 PC2LCD2018 软件 ；
菜单栏模式设置为 字符模式 ；

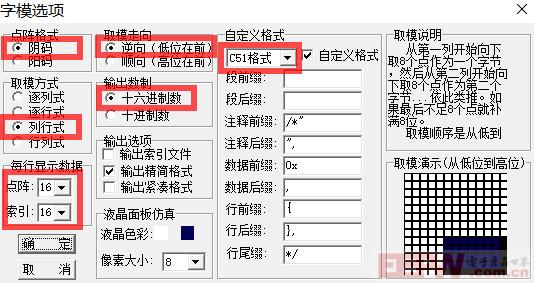

点击工具栏中的 设置 按钮，配置字模选项：列行式取模、低位在前等，设置完成后点击 确定 保存配置；
在文字输入选框输入目标汉字，点击 生成字模 ；
选中复制或保存字模，代码添加至 oledfont.h 文件。
参考：驱动0.96寸OLED显示屏 、STM32CubeMx+0.96寸OLED（IIC驱动）
代码
在 .../Core/Inc 文件夹新建 oled.h 和 oledfont.h 头文件，

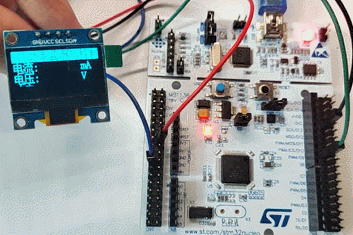

在 .../Src 文件夹新建 oled.c 文件，并在 main.c 中调用相关函数，实现功率计的框架显示
代码分别如下
oled.c
/*
* ======================
* ref: https://blog.csdn.net/m0_46295154/article/details/139970968
* ======================
*/
#include "oled.h"
#include "i2c.h"
#include "oledfont.h"
uint8_t CMD_Data[]={
0xAE, 0x00, 0x10, 0x40, 0xB0, 0x81, 0xFF, 0xA1, 0xA6, 0xA8, 0x3F,
0xC8, 0xD3, 0x00, 0xD5, 0x80, 0xD8, 0x05, 0xD9, 0xF1, 0xDA, 0x12,
0xD8, 0x30, 0x8D, 0x14, 0xAF}; //初始化命令
void WriteCmd(void)
{
uint8_t i = 0;
for(i=0; i<27; i++)
{
HAL_I2C_Mem_Write(&hi2c1 ,0x78,0x00,I2C_MEMADD_SIZE_8BIT,CMD_Data+i,1,0x100);
}
}
/**
* @function: void OLED_WR_CMD(uint8_t cmd)
* @description: 向设备写控制命令
* @param {uint8_t} cmd 芯片手册规定的命令
* @return {*}
*/
void OLED_WR_CMD(uint8_t cmd)
{
HAL_I2C_Mem_Write(&hi2c1 ,0x78,0x00,I2C_MEMADD_SIZE_8BIT,&cmd,1,0x100);
}
/**
* @function: void OLED_WR_DATA(uint8_t data)
* @description: 向设备写控制数据
* @param {uint8_t} data 数据
* @return {*}
*/
void OLED_WR_DATA(uint8_t data)
{
HAL_I2C_Mem_Write(&hi2c1 ,0x78,0x40,I2C_MEMADD_SIZE_8BIT,&data,1,0x100);
}
/**
* @function: void OLED_Init(void)
* @description: OLED初始化
* @return {*}
*/
void OLED_Init(void)
{
HAL_Delay(200);
WriteCmd();
}
/**
* @function: OLED_Clear(void)
* @description: 清屏,整个屏幕的像素点都是关闭的
* @return {*}
*/
void OLED_Clear(void)
{
uint8_t i,n;
for(i=0;i<8;i++)
{
OLED_WR_CMD(0xb0+i);
OLED_WR_CMD (0x00);
OLED_WR_CMD (0x10);
for(n=0;n<132;n++)
OLED_WR_DATA(0);
}
}
/**
* @function: void OLED_Display_On(void)
* @description: 更新显示
* @return {*}
*/
void OLED_Display_On(void)
{
OLED_WR_CMD(0X8D); //SET DCDC命令
OLED_WR_CMD(0X14); //DCDC ON
OLED_WR_CMD(0XAF); //DISPLAY ON
}
/**
* @function: void OLED_Display_Off(void)
* @description: 关闭OLED显示
* @return {*}
*/
void OLED_Display_Off(void)
{
OLED_WR_CMD(0X8D); //SET DCDC命令
OLED_WR_CMD(0X10); //DCDC OFF
OLED_WR_CMD(0XAE); //DISPLAY OFF
}
/**
* @function: void OLED_Set_Pos(uint8_t x, uint8_t y)
* @description: 坐标设置
* @param {uint8_t} x,y
* @return {*}
*/
void OLED_Set_Pos(uint8_t x, uint8_t y)
{
OLED_WR_CMD(0xb0+y);
OLED_WR_CMD(((x&0xf0)>>4)|0x10);
OLED_WR_CMD(x&0x0f);
}
/**
* @function: void OLED_On(void)
* @description: 更新显示
* @return {*}
*/
void OLED_On(void)
{
uint8_t i,n;
for(i=0;i<8;i++)
{
OLED_WR_CMD(0xb0+i); //设置页地址（0~7）
OLED_WR_CMD(0x00); //设置显示位置—列低地址
OLED_WR_CMD(0x10); //设置显示位置—列高地址
for(n=0;n<128;n++)
OLED_WR_DATA(1);
} //更新显示
}
/**
* @function: unsigned int oled_pow(uint8_t m,uint8_t n)
* @description: m^n函数
* @param {uint8_t} m,n
* @return {unsigned int} result
*/
unsigned int oled_pow(uint8_t m,uint8_t n)
{
unsigned int result=1;
while(n--)result*=m;
return result;
}
//显示2个数字
//x,y :起点坐标
//len :数字的位数
//size:字体大小
//mode:模式 0,填充模式;1,叠加模式
//num:数值(0~4294967295);
void OLED_ShowNum(uint8_t x,uint8_t y,unsigned int num,uint8_t len,uint8_t size2, uint8_t Color_Turn)
{
uint8_t t,temp;
uint8_t enshow=0;
for(t=0;t<len;t++)
{
temp=(num/oled_pow(10,len-t-1))%10;
if(enshow==0&&t<(len-1))
{
if(temp==0)
{
OLED_ShowChar(x+(size2/2)*t,y,' ',size2, Color_Turn);
continue;
}
else
enshow=1;
}
OLED_ShowChar(x+(size2/2)*t,y,temp+'0',size2, Color_Turn);
}
}
/**
* @function: void OLED_Showdecimal(uint8_t x,uint8_t y,float num,uint8_t z_len,uint8_t f_len,uint8_t size2, uint8_t Color_Turn)
* @description: 显示正负浮点数
* @param {uint8_t} x待显示的数字起始横坐标,x:0~126
* @param {uint8_t} y待显示的数字起始纵坐标, y:0~7，若选择字体大小为16，则两行数字之间需要间隔2，若选择字体大小为12，间隔1
* @param {float} num:输入的浮点型数据
* @param {uint8_t } z_ len:整数部分的位数
* @param {uint8_t } f_len: 小数部分的位数
* @param {uint8_t} size2:输入的数据大小，选择 16/12，16为8X16，12为6x8
* @param {uint8_t} Color_Turn是否反相显示(1反相、0不反相)
* @return {*}
*/
void OLED_ShowDecimal(uint8_t x,uint8_t y,float num,uint8_t z_len,uint8_t f_len,uint8_t size2, uint8_t Color_Turn)
{
uint8_t t,temp,i=0;//i为负数标志位
uint8_t enshow;
int z_temp,f_temp;
if(num<0)
{
z_len+=1;
i=1;
num=-num;
}
z_temp=(int)num;
//整数部分
for(t=0;t<z_len;t++)
{
temp=(z_temp/oled_pow(10,z_len-t-1))%10;
if(enshow==0 && t<(z_len-1))
{
if(temp==0)
{
OLED_ShowChar(x+(size2/2)*t,y,' ',size2, Color_Turn);
continue;
}
else
enshow=1;
}
OLED_ShowChar(x+(size2/2)*t,y,temp+'0',size2, Color_Turn);
}
//小数点
OLED_ShowChar(x+(size2/2)*(z_len),y,'.',size2, Color_Turn);
f_temp=(int)((num-z_temp)*(oled_pow(10,f_len)));
//小数部分
for(t=0;t<f_len;t++)
{
temp=(f_temp/oled_pow(10,f_len-t-1))%10;
OLED_ShowChar(x+(size2/2)*(t+z_len)+5,y,temp+'0',size2, Color_Turn);
}
if(i==1)//如果为负，就将最前的一位赋值‘-’
{
OLED_ShowChar(x,y,'-',size2, Color_Turn);
i=0;
}
}
/**
* @function: void OLED_ShowChar(uint8_t x, uint8_t y, uint8_t chr, uint8_t Char_Size,uint8_t Color_Turn)
* @description: 在OLED12864特定位置开始显示一个字符
* @param {uint8_t} x字符开始显示的横坐标 0~127
* @param {uint8_t} y字符开始显示的纵坐标 0~63
* @param {uint8_t} chr待显示的字符
* @param {uint8_t} Char_Size待显示字符的字体大小,选择字体 16/12
* @param {uint8_t} Color_Turn是否反相显示(1反相、0不反相)
* @return {*}
*/
void OLED_ShowChar(uint8_t x,uint8_t y,uint8_t chr,uint8_t Char_Size, uint8_t Color_Turn)
{
unsigned char c=0,i=0;
c=chr-' ';//得到偏移后的值
if(x>128-1){x=0;y=y+2;}
if(Char_Size ==16)
{
OLED_Set_Pos(x,y);
for(i=0;i<8;i++)
{
if(Color_Turn)
OLED_WR_DATA(~F8X16[c*16+i]);
else
OLED_WR_DATA(F8X16[c*16+i]);
}
//OLED_WR_DATA(F8X16[c*16+i]);
OLED_Set_Pos(x,y+1);
for(i=0;i<8;i++)
{
if(Color_Turn)
OLED_WR_DATA(~F8X16[c*16+i+8]);
else
OLED_WR_DATA(F8X16[c*16+i+8]);
}
//OLED_WR_DATA(F8X16[c*16+i+8]);
}
else
{
OLED_Set_Pos(x,y);
for(i=0;i<6;i++)
{
if(Color_Turn)
OLED_WR_DATA(~F6x8[c][i]);
else
OLED_WR_DATA(F6x8[c][i]);
}
//OLED_WR_DATA(F6x8[c][i]);
}
}
/**
* @function: void OLED_ShowString(uint8_t x, uint8_t y, uint8_t *chr, uint8_tChar_Size, uint8_t Color_Turn)
* @description: 在OLED12864特定位置开始显示字符串
* @param {uint8_t} x待显示字符串的开始横坐标x:0~127
* @param {uint8_t} y待显示字符串的开始纵坐标 y:0~7，若选择字体大小为16，则两行数字之间需要间隔2，若选择字体大小为12，间隔1
* @param {uint8_t} *chr待显示的字符串
* @param {uint8_t} Char_Size待显示字符串的字体大小,选择字体 16/12，16为8X16，12为6x8
* @param {uint8_t} Color_Turn是否反相显示(1反相、0不反相)
* @return {*}
*/
void OLED_ShowString(uint8_t x,uint8_t y,uint8_t *chr,uint8_t Char_Size, uint8_t Color_Turn)
{
uint8_t j=0;
while (chr[j]!='\0')
{
OLED_ShowChar(x,y,chr[j],Char_Size, Color_Turn);
if (Char_Size ==12) //6X8的字体列加6，显示下一个字符
x += 6;
else //8X16的字体列加8，显示下一个字符
x += 8;
if (x > 122 && Char_Size==12) //TextSize6x8如果一行不够显示了，从下一行继续显示
{
x = 0;
y++;
}
if (x > 120 && Char_Size== 16) //TextSize8x16如果一行不够显示了，从下一行继续显示
{
x = 0;
y++;
}
j++;
}
}
/**
* @function: void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no, uint8_t Color_Turn)
* @description: 在OLED特定位置开始显示16X16汉字
* @param {uint8_t} x待显示的汉字起始横坐标x: 0~112，两列汉字之间需要间隔16
* @param {uint8_t} y待显示的汉字起始纵坐标 y: 0~6 , 两行汉字之间需要间隔2
* @param {uint8_t} no待显示的汉字编号
* @param {uint8_t} Color_Turn是否反相显示(1反相、0不反相)
* @return {*}
*/
void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no, uint8_t Color_Turn)
{
uint8_t t=0;
OLED_Set_Pos(x,y);
for(t=0;t<16;t++)
{
if (Color_Turn)
OLED_WR_DATA(~Hzk[2*no][t]); //显示汉字的上半部分
else
OLED_WR_DATA(Hzk[2*no][t]); //显示汉字的上半部分
}
OLED_Set_Pos(x,y+1);
for(t=0;t<16;t++)
{
if (Color_Turn)
OLED_WR_DATA(~Hzk[2*no+1][t]); //显示汉字的上半部分
else
OLED_WR_DATA(Hzk[2*no+1][t]);//显示汉字的上半部分
}
}
/**
* @function: void OLED_DrawBMP(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t * BMP,uint8_t Color_Turn)
* @description: 在OLED特定区域显示BMP图片
* @param {uint8_t} x0图像开始显示横坐标 x0:0~127
* @param {uint8_t} y0图像开始显示纵坐标 y0:0~7
* @param {uint8_t} x1图像结束显示横坐标 x1:1~128
* @param {uint8_t} y1图像结束显示纵坐标 y1:1~8
* @param {uint8_t} *BMP待显示的图像数据
* @param {uint8_t} Color_Turn是否反相显示(1反相、0不反相)
* @return {*}
*/
void OLED_DrawBMP(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t * BMP,uint8_t Color_Turn)
{
uint32_t j = 0;
uint8_t x = 0, y = 0;
if(y1%8==0)
y = y1/8;
else
y = y1/8 + 1;
for(y=y0;y<y1;y++)
{
OLED_Set_Pos(x0,y);
for(x=x0;x<x1;x++)
{
if (Color_Turn)
OLED_WR_DATA(~BMP[j++]);//显示反相图片
else
OLED_WR_DATA(BMP[j++]);//显示图片
}
}
}
/*
@brief 显示动图
@param x0：起始列地址
y0：起始页地址
x1：终止列地址
y1：终止页地址
k: 帧个数
m: 单帧数组大小
BMP[][m]：存放动图代码的数组
@retval 无
*/
void OLED_DrawGIF(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t k, int m, unsigned char GIF[][m])
{
unsigned int j=0; //定义变量
unsigned char x,y,i; //定义变量
if(y1%8==0) y=y1/8; //判断终止页是否为8的整数倍
else y=y1/8+1;
for (i=0;i<k;i++) //从第一帧开始画
{
j = 0;
for(y=y0;y<y1;y++) //从起始页开始，画到终止页
{
OLED_Set_Pos(x0,y);//在页的起始列开始画
for(x=x0;x<x1;x++) //画x1 - x0 列
{
OLED_WR_DATA(GIF[i][j++]); //画图片的点
}
}
}
}
/**
* @function: void OLED_HorizontalShift(uint8_t direction)
* @description: 屏幕内容水平全屏滚动播放
* @param {uint8_t} direction LEFT 0x27 RIGHT 0x26
* @return {*}
*/
void OLED_HorizontalShift(uint8_t direction)
{
OLED_WR_CMD(0x2e);//停止滚动
OLED_WR_CMD(direction);//设置滚动方向
OLED_WR_CMD(0x00);//虚拟字节设置，默认为0x00
OLED_WR_CMD(0x00);//设置开始页地址
OLED_WR_CMD(0x07);//设置每个滚动步骤之间的时间间隔的帧频
// 0x00-5帧， 0x01-64帧， 0x02-128帧， 0x03-256帧， 0x04-3帧， 0x05-4帧， 0x06-25帧， 0x07-2帧，
OLED_WR_CMD(0x07);//设置结束页地址
OLED_WR_CMD(0x00);//虚拟字节设置，默认为0x00
OLED_WR_CMD(0xff);//虚拟字节设置，默认为0xff
OLED_WR_CMD(0x2f);//开启滚动-0x2f，禁用滚动-0x2e，禁用需要重写数据
}
/**
* @function: void OLED_Some_HorizontalShift(uint8_t direction,uint8_t start,uint8_t end)
* @description: 屏幕部分内容水平滚动播放
* @param {uint8_t} direction LEFT 0x27 RIGHT 0x26
* @param {uint8_t} start 开始页地址 0x00~0x07
* @param {uint8_t} end 结束页地址 0x01~0x07
* @return {*}
*/
void OLED_Some_HorizontalShift(uint8_t direction,uint8_t start,uint8_t end)
{
OLED_WR_CMD(0x2e);//停止滚动
OLED_WR_CMD(direction);//设置滚动方向
OLED_WR_CMD(0x00);//虚拟字节设置，默认为0x00
OLED_WR_CMD(start);//设置开始页地址
OLED_WR_CMD(0x07);//设置每个滚动步骤之间的时间间隔的帧频,0x07即滚动速度2帧
OLED_WR_CMD(end);//设置结束页地址
OLED_WR_CMD(0x00);//虚拟字节设置，默认为0x00
OLED_WR_CMD(0xff);//虚拟字节设置，默认为0xff
OLED_WR_CMD(0x2f);//开启滚动-0x2f，禁用滚动-0x2e，禁用需要重写数据
}
/**
* @function: void OLED_VerticalAndHorizontalShift(uint8_t direction)
* @description: 屏幕内容垂直水平全屏滚动播放
* @param {uint8_t} direction 右上滚动 0x29
* 左上滚动 0x2A
* @return {*}
*/
void OLED_VerticalAndHorizontalShift(uint8_t direction)
{
OLED_WR_CMD(0x2e);//停止滚动
OLED_WR_CMD(direction);//设置滚动方向
OLED_WR_CMD(0x01);//虚拟字节设置
OLED_WR_CMD(0x00);//设置开始页地址
OLED_WR_CMD(0x07);//设置每个滚动步骤之间的时间间隔的帧频，即滚动速度
OLED_WR_CMD(0x07);//设置结束页地址
OLED_WR_CMD(0x01);//垂直滚动偏移量
OLED_WR_CMD(0x00);//虚拟字节设置，默认为0x00
OLED_WR_CMD(0xff);//虚拟字节设置，默认为0xff
OLED_WR_CMD(0x2f);//开启滚动-0x2f，禁用滚动-0x2e，禁用需要重写数据
}
/**
* @function: void OLED_DisplayMode(uint8_t mode)
* @description: 屏幕内容取反显示
* @param {uint8_t} direction ON 0xA7 ，
* OFF 0xA6 默认此模式，设置像素点亮
* @return {*}
*/
void OLED_DisplayMode(uint8_t mode)
{
OLED_WR_CMD(mode);
}
/**
* @function: void OLED_IntensityControl(uint8_t intensity)
* @description: 屏幕亮度调节
* @param {uint8_t} intensity 0x00~0xFF,RESET=0x7F
* @return {*}
*/
void OLED_IntensityControl(uint8_t intensity)
{
OLED_WR_CMD(0x81);
OLED_WR_CMD(intensity);
}oled.h
#ifndef __OLED_H__ #define __OLED_H__ #include "stm32f4xx_hal.h" #define OLED_GPIO_CLK_ENABLE() __HAL_RCC_GPIOA_CLK_ENABLE() #define GPIOx_OLED_PORT GPIOB #define OLED_SCK_PIN GPIO_PIN_6 #define OLED_SCK_ON() HAL_GPIO_WritePin(GPIOx_OLED_PORT, OLED_SCK_PIN, GPIO_PIN_SET) #define OLED_SCK_OFF() HAL_GPIO_WritePin(GPIOx_OLED_PORT, OLED_SCK_PIN, GPIO_PIN_RESET) #define OLED_SCK_TOGGLE() HAL_GPIO_TogglePin(GPIOx_OLED_PORT, OLED_SCK_PIN) #define OLED_SDA_PIN GPIO_PIN_7 #define OLED_SDA_ON() HAL_GPIO_WritePin(GPIOx_OLED_PORT, OLED_SDA_PIN, GPIO_PIN_SET) #define OLED_SDA_OFF() HAL_GPIO_WritePin(GPIOx_OLED_PORT, OLED_SDA_PIN, GPIO_PIN_RESET) #define OLED_SDA_TOGGLE() HAL_GPIO_TogglePin(GPIOx_OLED_PORT, OLED_SDA_PIN) void WriteCmd(void); void OLED_WR_CMD(uint8_t cmd); void OLED_WR_DATA(uint8_t data); void OLED_Init(void); void OLED_Clear(void); void OLED_Display_On(void); void OLED_Display_Off(void); void OLED_Set_Pos(uint8_t x, uint8_t y); void OLED_On(void); void OLED_ShowNum(uint8_t x,uint8_t y,unsigned int num,uint8_t len,uint8_t size2, uint8_t Color_Turn); void OLED_ShowDecimal(uint8_t x,uint8_t y,float num,uint8_t z_len,uint8_t f_len,uint8_t size2, uint8_t Color_Turn); void OLED_ShowChar(uint8_t x,uint8_t y,uint8_t chr,uint8_t Char_Size, uint8_t Color_Turn); void OLED_ShowString(uint8_t x,uint8_t y,uint8_t *chr,uint8_t Char_Size, uint8_t Color_Turn); void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no, uint8_t Color_Turn); void OLED_DrawBMP(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t * BMP,uint8_t Color_Turn); void OLED_DrawGIF(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t k, int m, unsigned char GIF[][m]); void OLED_HorizontalShift(uint8_t direction); void OLED_Some_HorizontalShift(uint8_t direction,uint8_t start,uint8_t end); void OLED_VerticalAndHorizontalShift(uint8_t direction); void OLED_DisplayMode(uint8_t mode); void OLED_IntensityControl(uint8_t intensity); #endif
oledfont.h
#ifndef __OLEDFONT_H__
#define __OLEDFONT_H__
#include "stm32f4xx_hal.h"
//8*6 ASCII字符集点阵
const unsigned char F6x8[][6] =
{
0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
//16*8 ASCII字符集点阵
const unsigned char F8X16[]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//sp /0
0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! /1
0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" /2
0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# /3
0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ /4
0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% /5
0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& /6
0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' /7
0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( /8
0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) /9
0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* /10
0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ /11
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, /12
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- /13
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. /14
0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// /15
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 /16
0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 /17
0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 /18
0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 /19
0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 /20
0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 /21
0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 /22
0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 /23
0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 /24
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 /25
0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: /26
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; /27
0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< /28
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= /29
0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> /30
0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? /31
0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ /32
0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A /33
0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B /34
0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C /35
0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D /36
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E /37
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F /38
0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G /39
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H /40
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I /41
0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J /42
0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K /43
0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L /44
0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M /45
0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N /46
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O /47
0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P /48
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q /49
0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R /50
0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S /51
0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T /52
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U /53
0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V /54
0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W /55
0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X /56
0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y /57
0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z /58
0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ /59
0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ /60
0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] /61
0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ /62
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ /63
0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` /64
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a /65
0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b /66
0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c /67
0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d /68
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e /69
0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f /70
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g /71
0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h /72
0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i /73
0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j /74
0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k /75
0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l /76
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m /77
0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n /78
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o /79
0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p /80
0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q /81
0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r /82
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s /83
0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t /84
0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u /85
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v /86
0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w /87
0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x /88
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y /89
0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z /90
0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ /91
0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} /92
0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00
};//| /93
//部分汉字
const unsigned char Hzk[][32]=
{
// 功(0) 率(1) 监(2) 测(3) 与(4) 控(5) 制(6) 电(7) 压(8) 流(9)
{0x08,0x08,0x08,0xF8,0x08,0x08,0x08,0x10,0x10,0xFF,0x10,0x10,0x10,0xF0,0x00,0x00},
{0x10,0x30,0x10,0x1F,0x08,0x88,0x48,0x30,0x0E,0x01,0x40,0x80,0x40,0x3F,0x00,0x00},/*"功",0*/
{0x00,0x14,0xA4,0x44,0x24,0x34,0xAD,0x66,0x24,0x94,0x04,0x44,0xA4,0x14,0x00,0x00},
{0x08,0x09,0x08,0x08,0x09,0x09,0x09,0xFD,0x09,0x09,0x0B,0x08,0x08,0x09,0x08,0x00},/*"率",1*/
{0x00,0x00,0x7E,0x00,0x00,0xFF,0x00,0x40,0x30,0x0F,0x04,0x14,0x64,0x04,0x00,0x00},
{0x40,0x40,0x7E,0x42,0x42,0x7E,0x42,0x42,0x42,0x7E,0x42,0x42,0x7E,0x40,0x40,0x00},/*"监",2*/
{0x10,0x60,0x02,0x8C,0x00,0xFE,0x02,0xF2,0x02,0xFE,0x00,0xF8,0x00,0xFF,0x00,0x00},
{0x04,0x04,0x7E,0x01,0x80,0x47,0x30,0x0F,0x10,0x27,0x00,0x47,0x80,0x7F,0x00,0x00},/*"测",3*/
{0x00,0x00,0xE0,0x9F,0x88,0x88,0x88,0x88,0x88,0x88,0x88,0x88,0x88,0x08,0x00,0x00},
{0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x48,0x80,0x40,0x3F,0x00,0x00,0x00},/*"与",4*/
{0x10,0x10,0x10,0xFF,0x90,0x20,0x98,0x48,0x28,0x09,0x0E,0x28,0x48,0xA8,0x18,0x00},
{0x02,0x42,0x81,0x7F,0x00,0x40,0x40,0x42,0x42,0x42,0x7E,0x42,0x42,0x42,0x40,0x00},/*"控",5*/
{0x40,0x50,0x4E,0x48,0x48,0xFF,0x48,0x48,0x48,0x40,0xF8,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x3E,0x02,0x02,0xFF,0x12,0x22,0x1E,0x00,0x0F,0x40,0x80,0x7F,0x00,0x00},/*"制",6*/
{0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x88,0xF8,0x00,0x00,0x00},
{0x00,0x00,0x1F,0x08,0x08,0x08,0x08,0x7F,0x88,0x88,0x88,0x88,0x9F,0x80,0xF0,0x00},/*"电",7*/
{0x00,0x00,0xFE,0x02,0x82,0x82,0x82,0x82,0xFA,0x82,0x82,0x82,0x82,0x82,0x02,0x00},
{0x80,0x60,0x1F,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x44,0x58,0x40,0x40,0x00},/*"压",8*/
{0x10,0x60,0x02,0x8C,0x00,0x44,0x64,0x54,0x4D,0x46,0x44,0x54,0x64,0xC4,0x04,0x00},
{0x04,0x04,0x7E,0x01,0x80,0x40,0x3E,0x00,0x00,0xFE,0x00,0x00,0x7E,0x80,0xE0,0x00},/*"流",9*/
/* (16 X 16 , 宋体 )*/
};
#endifmain.c
#include "main.h"
#include "i2c.h"
#include "usart.h"
#include "gpio.h"
#include "oled.h"
void SystemClock_Config(void);
int main(void)
{
HAL_Init();
SystemClock_Config();
MX_GPIO_Init();
MX_I2C1_Init();
MX_USART2_UART_Init();
/* USER CODE BEGIN 2 */
OLED_Init();
OLED_Clear();
/* --- 1st row --- */
OLED_ShowString(0,0,"DIY",16,1); // DIY
OLED_ShowCHinese(24,0,0,1); // 功
OLED_ShowCHinese(39,0,1,1); // 率
OLED_ShowCHinese(54,0,2,1); // 监
OLED_ShowCHinese(69,0,3,1); // 测
OLED_ShowCHinese(84,0,4,1); // 与
OLED_ShowCHinese(99,0,5,1); // 控
OLED_ShowCHinese(113,0,6,1); // 制
OLED_ShowCHinese(0,2,7,0); // 电
OLED_ShowCHinese(15,2,9,0); // 流
OLED_ShowChar(30,2,':',16,0);
OLED_ShowString(100,2,"mA",16,0);
OLED_ShowCHinese(0,4,7,0); // 电
OLED_ShowCHinese(15,4,8,0); // 压
OLED_ShowChar(30,4,':',16,0);
OLED_ShowString(100,4,"V",16,0);
OLED_ShowCHinese(0,6,0,0); // 功
OLED_ShowCHinese(15,6,1,0); // 率
OLED_ShowChar(30,6,':',16,0);
OLED_ShowString(100,6,"mW",16,0);
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
}
/* USER CODE END 3 */
}效果
动态效果
总结
本文介绍了基于 NUCLEO-F411RE 开发板、使用 SMT32CubeMX 软件快速生成工程，实现了通过硬件 I2C1 实现 4 线 OLED 屏显示数字、字符、字符串、汉字的项目设计，包括原理介绍、硬件连接、汉字取模、代码解析等流程，为后续的开发和深入研究做铺垫，也为相关产品及项目的开发设计提供了参考。
STM32
MCU
通讯及无线技术
物联网技术
电子DIY
板卡试用
基础知识
软件与操作系统
我爱生活
小e食堂
