实现基于树莓派5的温度控制系统,使用AHT10传感器检测环境温度,并通过控制直流小电机和PTC加热块来维持设定温度,按照以下步骤进行设计和实现。
1. 硬件连接
树莓派5。
AHT10温湿度传感器模块。
直流小电机,5V工作电压。
PTC加热块,5V工作电压。
三极管PNP型,用来控制电机和加热块。
AHT10传感器连接:
VCC → 树莓派5V引脚。
GND → 树莓派GND引脚。
SCL → 树莓派GPIO3(I²C时钟线)。
SDA → 树莓派GPIO2(I²C数据线)。
直流小电机连接:
电机正极 → 树莓派5V引脚。
电机负极 → 三极管集电极(C)。
三极管发射极(E)→ 树莓派GND引脚。
三极管基极(B)→ 树莓派GPIO17,通过电阻连接。
PTC加热块连接:
PTC加热块正极 → 树莓派5V引脚。
PTC加热块负极 → 三极管集电极(C)。
三极管发射极(E)→ 树莓派GND引脚。
三极管基极(B)→ 树莓派GPIO27,通过电阻220Ω连接。

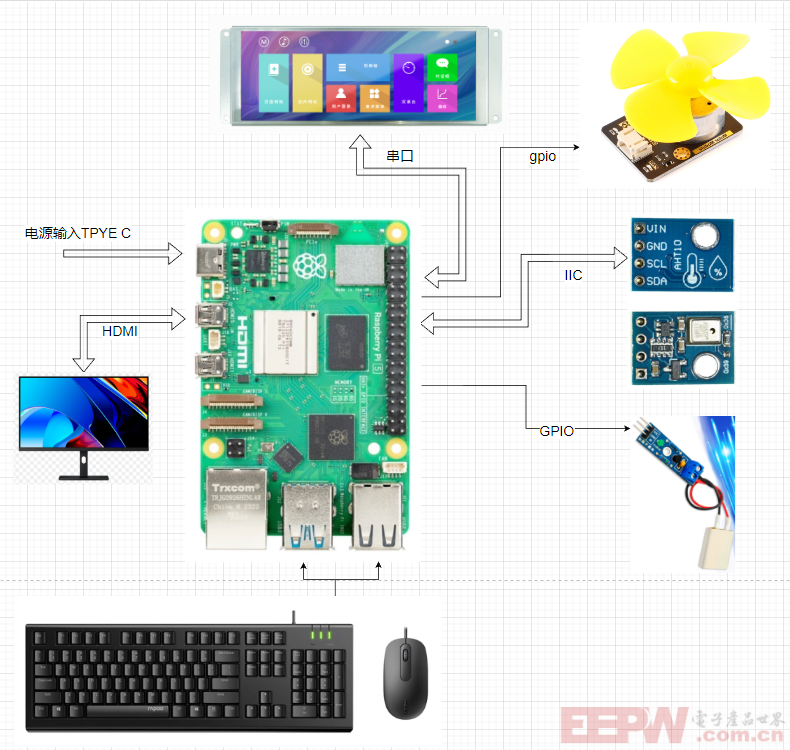

2、连接示意图
3、参考代码
import smbus2 import time import RPi.GPIO as GPIO # 初始化GPIO GPIO.setmode(GPIO.BCM) GPIO.setwarnings(False) # 定义引脚 MOTOR_PIN = 17 HEATER_PIN = 27 # 设置GPIO为输出 GPIO.setup(MOTOR_PIN, GPIO.OUT) GPIO.setup(HEATER_PIN, GPIO.OUT) # 初始化AHT10传感器 class AHT10: def __init__(self, bus=1, address=0x38): self.bus = smbus2.SMBus(bus) self.address = address self.initialize() def initialize(self): config_bytes = [0xE1, 0x08, 0x00] self.bus.write_i2c_block_data(self.address, 0, config_bytes) time.sleep(0.1) def read_data(self): measure_bytes = [0xAC, 0x33, 0x00] self.bus.write_i2c_block_data(self.address, 0, measure_bytes) time.sleep(0.08) data = self.bus.read_i2c_block_data(self.address, 0, 6) if not (data[0] & 0x80): humidity_raw = ((data[1] << 12) | (data[2] << 4) | (data[3] >> 4)) humidity = (humidity_raw / 1048576) * 100 temperature_raw = (((data[3] & 0x0F) << 16) | (data[4] << 8) | data[5]) temperature = (temperature_raw / 1048576) * 200 - 50 return {"temperature": round(temperature, 2), "humidity": round(humidity, 2)} else: return None # 温度控制逻辑 def temperature_control(target_temp): aht10 = AHT10() while True: data = aht10.read_data() if data: current_temp = data['temperature'] print(f"Current Temperature: {current_temp}°C") if current_temp < target_temp - 1: # 如果温度低于设定值-1,开启加热 GPIO.output(HEATER_PIN, GPIO.HIGH) GPIO.output(MOTOR_PIN, GPIO.LOW) print("Heating...") elif current_temp > target_temp + 1: # 如果温度高于设定值+1,开启电机散热 GPIO.output(HEATER_PIN, GPIO.LOW) GPIO.output(MOTOR_PIN, GPIO.HIGH) print("Cooling...") else: # 温度在设定范围内,关闭所有设备 GPIO.output(HEATER_PIN, GPIO.LOW) GPIO.output(MOTOR_PIN, GPIO.LOW) print("Temperature stable.") time.sleep(2) # 每2秒检测一次 if __name__ == "__main__": try: target_temperature = 25.0 # 设定目标温度 temperature_control(target_temperature) except KeyboardInterrupt: GPIO.cleanup() print("Program terminated.")
4、实物照片

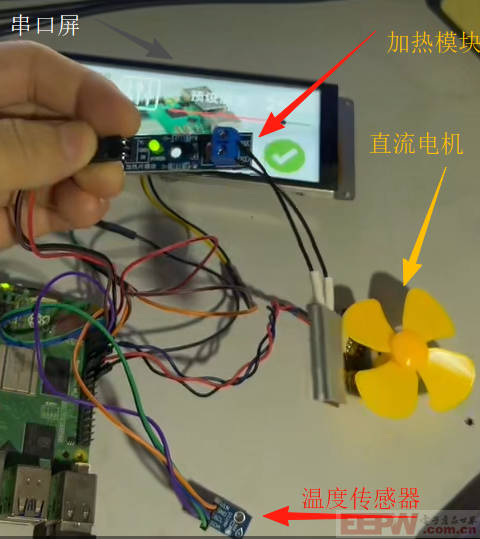

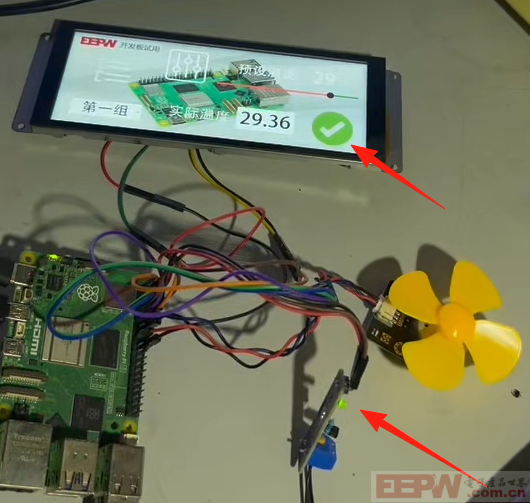

全部连接工作图:

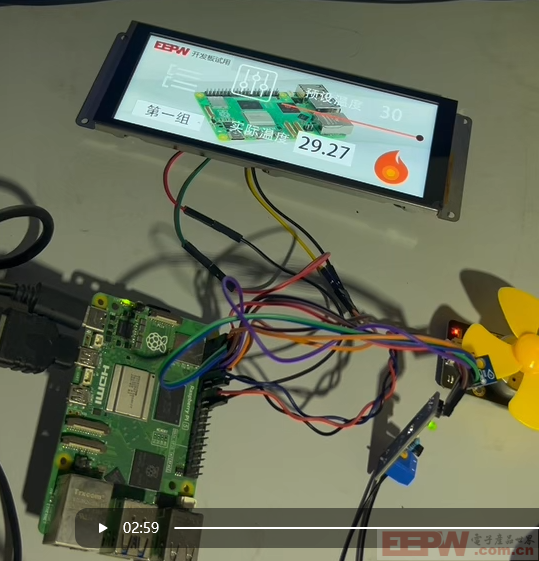

加温工作图:

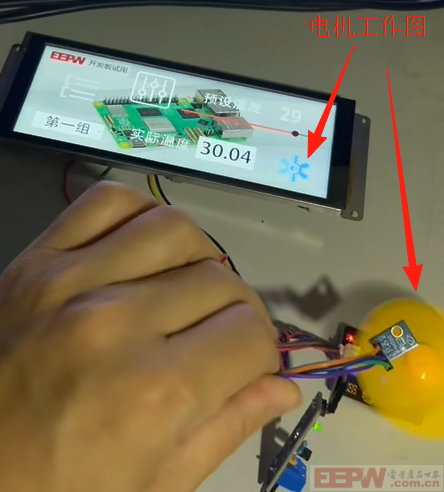

温度到了后,电机工作图:
5、运行效果视频
