IPQ6010 QCN9074 high power industrial wifi router support openWRT/Wallys 802.11ax boards DR6018-S V02



802.11ac and 802.11ax are different wireless (WiFi) technology standards that are present in WiFi routers or gateways.WiFi and Internet capabilities are constantly evolving. Up until 2019, the most common wireless standard called for 802.11ac, also referred to as WiFi 5. However, in late 2019, 802.11ax (also known as WiFi 6) was launched, providing enhanced capabilities over its predecessor. These two WiFi standards are important to understand because they determine what devices you will need for your home network, which features they support, and the overall performance of your WiFi.



Here are wallys 802.11ax boards and cards.

DR6018 V4

DR6018C V01

DR6018-S V02

DR8072 V01

DR5018

DR9074-6E(PN02.7)

DR9074-5G(PN02.1)

DR9074-2.4G(PN01.1)



We have introduced DR6018V4 in previous article and today lets talk about the DR6018-S V02.

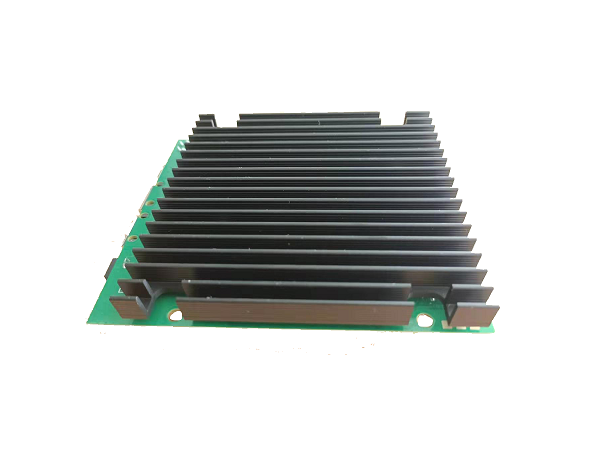

DR6018-S V02



This is a router board integrated with Qualcomm-Atheros IPQ6010/IPQ6018/IPQ6000 CPU,Processor with Quad-core ARM 64bit A53 @1.8GHz,and the System Memory is 1GB DDRL3L.8MB NOR Flash, 256MB NAND Flash,Supports Dynamic Frequency Selection (DFS),2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate,2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate,support: QUECTEL RM500Q-GL,support: QCN9074 WiFi 6E Card.







Regard to the Absolute Maximum Rating,well introduce from 4 perspectives parameters:Supply Voltage,Operating Temperature Range,Storage Temperature Range and Operating Humidity Range.



For the Supply Voltage,it is 24V~48V(DC Jack).

For the Operating Temperature Range,it is -40ºC to +70ºC.

For the Storage Temperature Range,it is -45ºC to +105ºC.

For the Operating Humidity Range,It is 5 to +95 (non-condensing)%.





Regard to the Hardware Specifications,well introduce from 15 perspectives:

For the CPU,it is Qualcomm-Atheros IPQ6010.

For the CPU Frequency,it is Quad-core ARM 64 bit A53 @1.8 GHz processor.

For the System Memory,it is 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design.

For the Ethernet Port,It is 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports

For the NGFF Slot,It is M.2 (NGFF) E KeySocket with MiniPCIe 3.0(For WiFi Module)

For the SD Card Slot,It is 1x SD Card Slot

For the USB /header,It is 1x USB 3.0 Port(Option)

For the POE,It is 24V~48V passive POE/Active POE(Suport 802.3bt)

For the DC Jack,It is 24V~48V power supply

For the LED header,It is 2.0 pitch pin header

For the Serial Port,It is 1x Serial Port 4 Pin Connector

For the Wireless,It is On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/802.11g/802.11n/802.11ax,max 23dBm per chain;On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain;4 x MMCX Connectors

For the Nor Flash,It is 8MBFor the Nand Flash,It is 256MB

For the DDR,It is 256~512MB(different from DR6018V4,same as DR6018 C)

For the Dimension,It is 125mm x 105mm x 20mm.(smaller than DR6018V4)



Wallys Communications(Suzhou) Co.,Ltd,known as a specialist in researching and developing and producing of wireless communication products,have star product as Routerboard,Network Card,Industrial Wireless AP,Antenna etc,is one of the suppliers of the Facebook.



With the professional R&D teams which possess over 15 years experience,we could not only providing OEM/ODM/JDM services,but also have the ability to supporting customization service for you.From idea design to manufacture to put the product into market.



Email us by sales1@wallystech.com

For more information,visit our website:https://www.wallystech.com/
