【简介】
我们在之前的S32K146 的工程中时钟配置使用的S32 Design Studio for S32 Platform 3.5 配置工具生成的配置代码，生成的配置结构体会配置整个时钟系统，生成的配置结构如下：
/**
* @page misra_violations MISRA-C:2012 violations
*
* @section [global]
* Violates MISRA 2012 Required Rule 9.4, Duplicate initialization of object element.
* It's the only way to initialize an array that is member of struct.
*
* @section [global]
* Violates MISRA 2012 Advisory Rule 8.7, External variable could be made static.
* The external variables will be used in other source files in application code.
*/
/* TEXT BELOW IS USED AS SETTING FOR TOOLS *************************************
!!GlobalInfo
product: Clocks v13.0
processor: S32K146
package_id: S32K146_LQFP144
mcu_data: s32sdk_s32k1xx_rtm_401
processor_version: 0.0.0
* BE CAREFUL MODIFYING THIS COMMENT - IT IS YAML SETTINGS FOR TOOLS **********/
#include "clock_config.h"
/*******************************************************************************
* Definitions
******************************************************************************/
/*******************************************************************************
* Variables
******************************************************************************/
/* TEXT BELOW IS USED AS SETTING FOR TOOLS *************************************
!!Configuration
name: BOARD_BootClockRUN
called_from_default_init: true
outputs:
- {id: ADC0_CLK.outFreq, value: 8 MHz}
- {id: ADC1_CLK.outFreq, value: 8 MHz}
- {id: BUS_CLK.outFreq, value: 40 MHz}
- {id: CLKOUT.outFreq, value: 48 MHz}
- {id: CMP0_CLK.outFreq, value: 40 MHz}
- {id: CORE_CLK.outFreq, value: 80 MHz}
- {id: CRC0_CLK.outFreq, value: 40 MHz}
- {id: DMA0_CLK.outFreq, value: 80 MHz}
- {id: DMAMUX0_CLK.outFreq, value: 40 MHz}
- {id: EIM0_CLK.outFreq, value: 80 MHz}
- {id: ERM0_CLK.outFreq, value: 80 MHz}
- {id: EWM0_CLK.outFreq, value: 40 MHz}
- {id: FIRCDIV1_CLK.outFreq, value: 48 MHz}
- {id: FIRCDIV2_CLK.outFreq, value: 48 MHz}
- {id: FLASH_CLK.outFreq, value: 20 MHz}
- {id: FLEXCAN0_CLK.outFreq, value: 80 MHz}
- {id: FLEXCAN1_CLK.outFreq, value: 80 MHz}
- {id: FLEXCAN2_CLK.outFreq, value: 80 MHz}
- {id: FTFC0_CLK.outFreq, value: 20 MHz}
- {id: FTM0_CLK.outFreq, value: 8 MHz}
- {id: FTM1_CLK.outFreq, value: 8 MHz}
- {id: FTM2_CLK.outFreq, value: 8 MHz}
- {id: FTM3_CLK.outFreq, value: 8 MHz}
- {id: FTM4_CLK.outFreq, value: 8 MHz}
- {id: FTM5_CLK.outFreq, value: 8 MHz}
- {id: FlexIO0_CLK.outFreq, value: 8 MHz}
- {id: LPI2C0_CLK.outFreq, value: 8 MHz}
- {id: LPIT0_CLK.outFreq, value: 8 MHz}
- {id: LPO_1K_CLK.outFreq, value: 1 kHz}

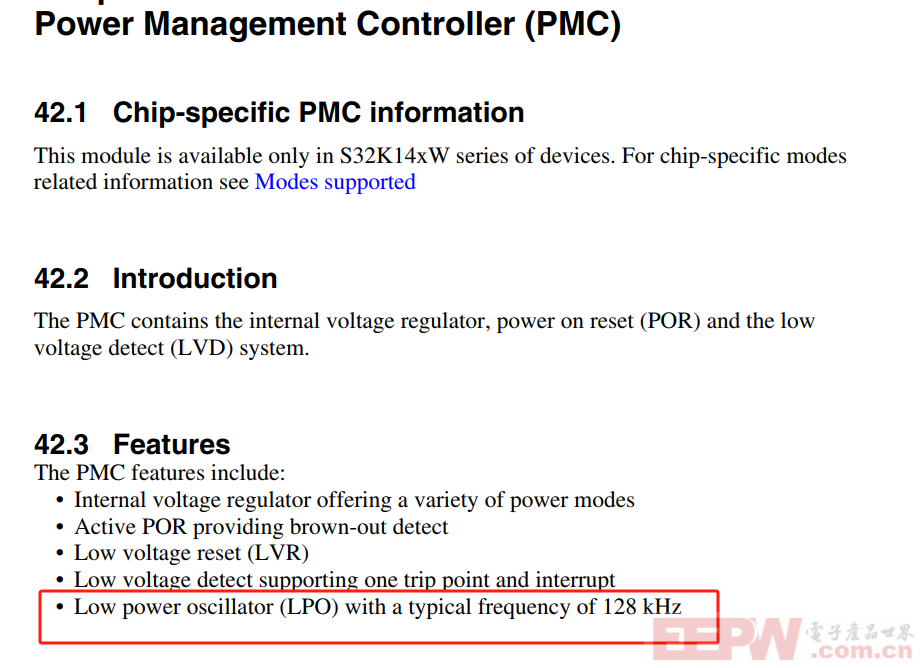

- {id: LPO_CLK.outFreq, value: 128 kHz}
- {id: LPSPI0_CLK.outFreq, value: 8 MHz}
- {id: LPSPI1_CLK.outFreq, value: 8 MHz}
- {id: LPSPI2_CLK.outFreq, value: 8 MHz}
- {id: LPTMR0_CLK.outFreq, value: 8 MHz}
- {id: LPUART0_CLK.outFreq, value: 16 MHz}
- {id: LPUART1_CLK.outFreq, value: 16 MHz}
- {id: LPUART2_CLK.outFreq, value: 16 MHz}
- {id: MPU0_CLK.outFreq, value: 80 MHz}
- {id: MSCM0_CLK.outFreq, value: 80 MHz}
- {id: PDB0_CLK.outFreq, value: 80 MHz}
- {id: PDB1_CLK.outFreq, value: 80 MHz}
- {id: PORTA_CLK.outFreq, value: 40 MHz}
- {id: PORTB_CLK.outFreq, value: 40 MHz}
- {id: PORTC_CLK.outFreq, value: 40 MHz}
- {id: PORTD_CLK.outFreq, value: 40 MHz}
- {id: PORTE_CLK.outFreq, value: 40 MHz}
- {id: RTC0_CLK.outFreq, value: 40 MHz}
- {id: RTC_CLK.outFreq, value: 48 MHz}
- {id: SCGCLKOUT.outFreq, value: 48 MHz}
- {id: SIRCDIV1_CLK.outFreq, value: 8 MHz}
- {id: SIRCDIV2_CLK.outFreq, value: 8 MHz}
- {id: SOSCDIV1_CLK.outFreq, value: 16 MHz}
- {id: SOSCDIV2_CLK.outFreq, value: 16 MHz}
- {id: SPLLDIV1_CLK.outFreq, value: 80 MHz}
- {id: SPLLDIV2_CLK.outFreq, value: 40 MHz}
- {id: SPLL_CLK_OUT.outFreq, value: 160 MHz}
- {id: SYS_CLK.outFreq, value: 80 MHz}
- {id: TRACE_CLK.outFreq, value: 80 MHz}
settings:
- {id: 'HSRUN:SCG.DIVBUS.scale', value: '2', locked: true}
- {id: 'HSRUN:SCG.DIVCORE.scale', value: '2', locked: true}
- {id: 'HSRUN:SCG.DIVSLOW.scale', value: '4', locked: true}
- {id: 'HSRUN:SCG.SCSSEL.sel', value: SCG.SPLL_CLK}
- {id: PCC.LPTMR0_FRAC.scale, value: '1', locked: true}
- {id: PCC.LPUART0_CLK_SEL.sel, value: SCG.SOSCDIV2_CLK}
- {id: PCC.LPUART1_CLK_SEL.sel, value: SCG.SOSCDIV2_CLK}
- {id: PCC.LPUART2_CLK_SEL.sel, value: SCG.SOSCDIV2_CLK}
- {id: PCC.PREDIV.scale, value: '1', locked: true}
- {id: PCC.PREDIVTRACE.scale, value: '1', locked: true}
- {id: PCC.TRACE_FRAC.scale, value: '1', locked: true}
- {id: RTCCLKSEL.sel, value: SCG.FIRCDIV1_CLK}
- {id: 'RUN:SCG.DIVBUS.scale', value: '2', locked: true}
- {id: 'RUN:SCG.DIVCORE.scale', value: '2', locked: true}
- {id: 'RUN:SCG.DIVSLOW.scale', value: '4', locked: true}
- {id: 'RUN:SCG.SCSSEL.sel', value: SCG.SPLL_CLK}
- {id: SCG.DIVBUS.scale, value: '2', locked: true}
- {id: SCG.DIVCORE.scale, value: '2', locked: true}
- {id: SCG.DIVSLOW.scale, value: '4', locked: true}
- {id: SCG.FIRCDIV1.scale, value: '1', locked: true}
- {id: SCG.FIRCDIV2.scale, value: '1', locked: true}
- {id: SCG.PREDIV.scale, value: '1', locked: true}
- {id: SCG.SCSSEL.sel, value: SCG.SPLL_CLK}
- {id: SCG.SIRCDIV1.scale, value: '1', locked: true}
- {id: SCG.SIRCDIV2.scale, value: '1', locked: true}
- {id: SCG.SOSCDIV1.scale, value: '1', locked: true}
- {id: SCG.SOSCDIV2.scale, value: '1', locked: true}
- {id: SCG.SPLLDIV1.scale, value: '2', locked: true}
- {id: SCG.SPLLDIV2.scale, value: '4', locked: true}
- {id: SCG.SPLL_mul.scale, value: '20', locked: true}
- {id: 'VLPR:SCG.DIVBUS.scale', value: '1', locked: true}
- {id: 'VLPR:SCG.DIVCORE.scale', value: '2', locked: true}
- {id: 'VLPR:SCG.DIVSLOW.scale', value: '4', locked: true}
- {id: 'VLPR:SCG.SCSSEL.sel', value: SCG.SIRC}
sources:
- {id: SCG.SOSC.outFreq, value: 16 MHz, enabled: true}
* BE CAREFUL MODIFYING THIS COMMENT - IT IS YAML SETTINGS FOR TOOLS **********/
/* *************************************************************************
* Configuration structure for peripheral clock configuration 0
* ************************************************************************* */
/*! @brief peripheral clock configuration 0 */
peripheral_clock_config_t peripheralClockConfig0[NUM_OF_PERIPHERAL_CLOCKS_0] = {
{
.clockName = ADC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = ADC1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPSPI0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPSPI1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPSPI2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPUART0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SOSC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPUART1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SOSC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPUART2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SOSC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPI2C0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPIT0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPTMR0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM3_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM4_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM5_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FLEXIO0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = CMP0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = CRC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = DMAMUX0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = EWM0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTFC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PDB0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PDB1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = RTC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FlexCAN0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FlexCAN1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FlexCAN2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTA_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTB_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTC_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTD_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTE_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
};
/* *************************************************************************

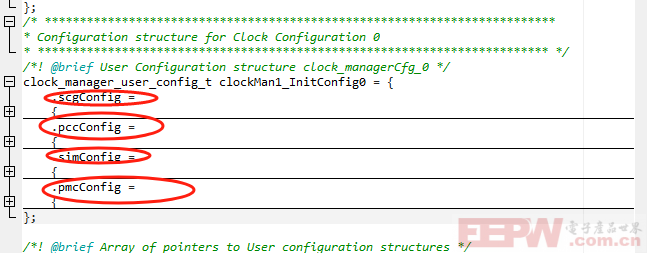

* Configuration structure for Clock Configuration 0
* ************************************************************************* */
/*! @brief User Configuration structure clock_managerCfg_0 */
clock_manager_user_config_t clockMan1_InitConfig0 = {

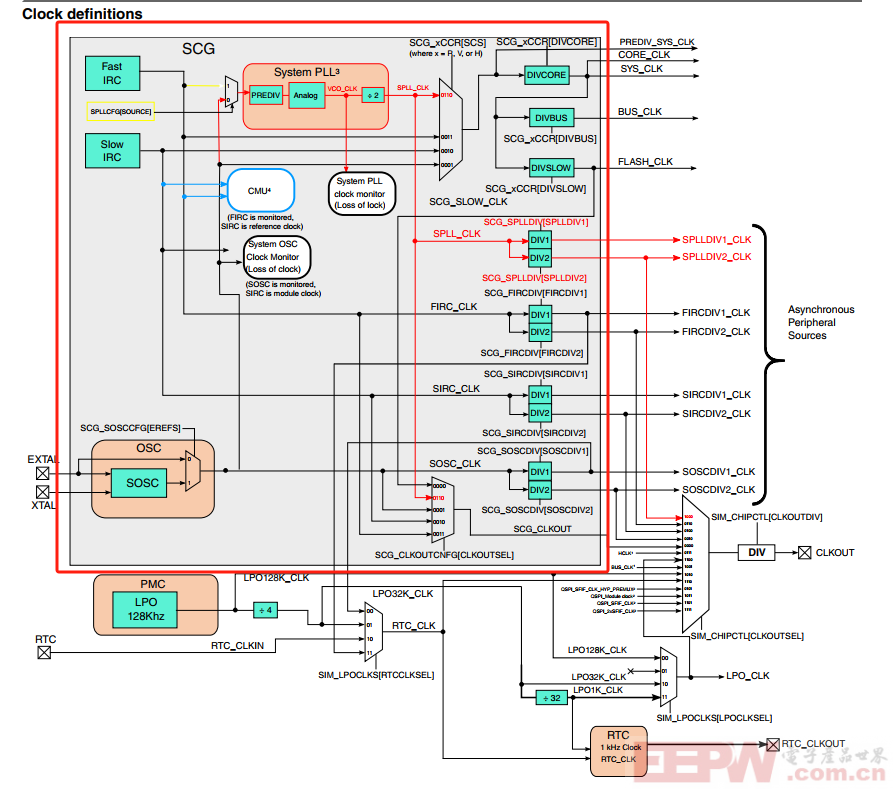

.scgConfig =
{
.sircConfig =
{
.initialize = true,
.enableInStop = true, /* Enable SIRC in stop mode */
.enableInLowPower = true, /* Enable SIRC in low power mode */
.locked = false, /* unlocked */
.range = SCG_SIRC_RANGE_HIGH, /* Slow IRC high range clock (8 MHz) */
.div1 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Slow IRC Clock Divider 1: divided by 1 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Slow IRC Clock Divider 3: divided by 1 */
},
.fircConfig =
{
.initialize = true,
.regulator = true, /* FIRC regulator is enabled */
.locked = false, /* unlocked */
.range = SCG_FIRC_RANGE_48M, /*!< RANGE */
.div1 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Fast IRC Clock Divider 1: divided by 1 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Fast IRC Clock Divider 3: divided by 1 */
},
.rtcConfig =
{
.initialize = false,
},
.soscConfig =
{
.initialize = true,
.freq = 16000000U, /* System Oscillator frequency: 16000000Hz */
.monitorMode = SCG_SOSC_MONITOR_DISABLE,/* Monitor disabled */
.locked = false, /* SOSC disabled */
.extRef = SCG_SOSC_REF_OSC, /* Internal oscillator of OSC requested. */
.gain = SCG_SOSC_GAIN_LOW, /* Configure crystal oscillator for low-gain operation */
.range = SCG_SOSC_RANGE_HIGH, /* High frequency range selected for the crystal oscillator of 8 MHz to 40 MHz. */
.div1 = SCG_ASYNC_CLOCK_DIV_BY_1, /* System OSC Clock Divider 1: divided by 1 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_1, /* System OSC Clock Divider 3: divided by 1 */
},
.spllConfig =
{
.initialize = true,
.monitorMode = SCG_SPLL_MONITOR_DISABLE,/* Monitor disabled */
.locked = false, /* unlocked */
.prediv = (uint8_t)SCG_SPLL_CLOCK_PREDIV_BY_1,/* Divided by 1 */
.mult = (uint8_t)SCG_SPLL_CLOCK_MULTIPLY_BY_20,/* Multiply Factor is 20 */
.src = 0U,
.div1 = SCG_ASYNC_CLOCK_DIV_BY_2, /* System PLL Clock Divider 1: divided by 2 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_4, /* System PLL Clock Divider 3: divided by 4 */
},
.clockOutConfig =
{
.initialize = true,
.source = SCG_CLOCKOUT_SRC_FIRC, /* Fast IRC. */
},
.clockModeConfig =
{
.initialize = true,
.rccrConfig =
{
.src = SCG_SYSTEM_CLOCK_SRC_SYS_PLL,/* System PLL */
.divCore = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Core Clock Divider: divided by 2 */
.divBus = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Bus Clock Divider: divided by 2 */
.divSlow = SCG_SYSTEM_CLOCK_DIV_BY_4,/* Slow Clock Divider: divided by 4 */
},
.vccrConfig =
{
.src = SCG_SYSTEM_CLOCK_SRC_SIRC, /* Slow IRC */
.divCore = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Core Clock Divider: divided by 2 */
.divBus = SCG_SYSTEM_CLOCK_DIV_BY_1,/* Bus Clock Divider: divided by 1 */
.divSlow = SCG_SYSTEM_CLOCK_DIV_BY_4,/* Slow Clock Divider: divided by 4 */
},
.hccrConfig =
{
.src = SCG_SYSTEM_CLOCK_SRC_SYS_PLL,/* System PLL */
.divCore = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Core Clock Divider: divided by 2 */
.divBus = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Bus Clock Divider: divided by 2 */
.divSlow = SCG_SYSTEM_CLOCK_DIV_BY_4,/* Slow Clock Divider: divided by 4 */
},
},
},
.pccConfig =
{
.peripheralClocks = peripheralClockConfig0, /*!< Peripheral clock control configurations */
.count = NUM_OF_PERIPHERAL_CLOCKS_0, /*!< Number of the peripheral clock control configurations */
},
.simConfig =
{
.clockOutConfig =
{
.initialize = true, /*!< Initialize */
.enable = true, /* enabled */
.source = SIM_CLKOUT_SEL_SYSTEM_SCG_CLKOUT,/* SCG CLKOUT clock select: SCG slow clock */
.divider = SIM_CLKOUT_DIV_BY_1, /* Divided by 1 */
},
.lpoClockConfig =
{
.initialize = true, /*!< Initialize */
.enableLpo1k = true, /*!< LPO1KCLKEN */
.enableLpo32k = true, /*!< LPO32KCLKEN */
.sourceLpoClk = SIM_LPO_CLK_SEL_LPO_128K,/* 128 kHz LPO clock */
.sourceRtcClk = SIM_RTCCLK_SEL_FIRCDIV1_CLK,/* FIRCDIV1 clock */
},
.platGateConfig =
{
.initialize = true, /*!< Initialize */
.enableEim = true, /*!< CGCEIM */
.enableErm = true, /*!< CGCERM */
.enableDma = true, /*!< CGCDMA */
.enableMpu = true, /*!< CGCMPU */
.enableMscm = true, /*!< CGCMSCM */
},
.tclkConfig =
{
.initialize = false, /*!< Initialize */
},
.traceClockConfig =
{
.initialize = true, /*!< Initialize */
.divEnable = true, /*!< TRACEDIVEN */
.source = CLOCK_TRACE_SRC_CORE_CLK, /*!< TRACECLK_SEL */
.divider = 0U, /*!< TRACEDIV */
.divFraction = false, /*!< TRACEFRAC */
},
},
.pmcConfig =
{
.lpoClockConfig =
{
.initialize = true, /*!< Initialize */
.enable = true, /*!< Enable/disable LPO */
.trimValue = 0, /*!< Trimming value for LPO */
},
},
};
/*! @brief Array of pointers to User configuration structures */
clock_manager_user_config_t const * g_clockManConfigsArr[] = {
&clockMan1_InitConfig0
};
/*! @brief Array of pointers to User defined Callbacks configuration structures */
/* The tool do not support generate Callbacks configuration. It's always empty. */
clock_manager_callback_user_config_t * g_clockManCallbacksArr[] = {(void*)0};从上述生成的配置代码看对应的配置项目相对还是很复杂的，从生成的结构体的配置成员来看主要涉及SCG/PCC/SIM/PMC 的配置。
【SCG 配置】

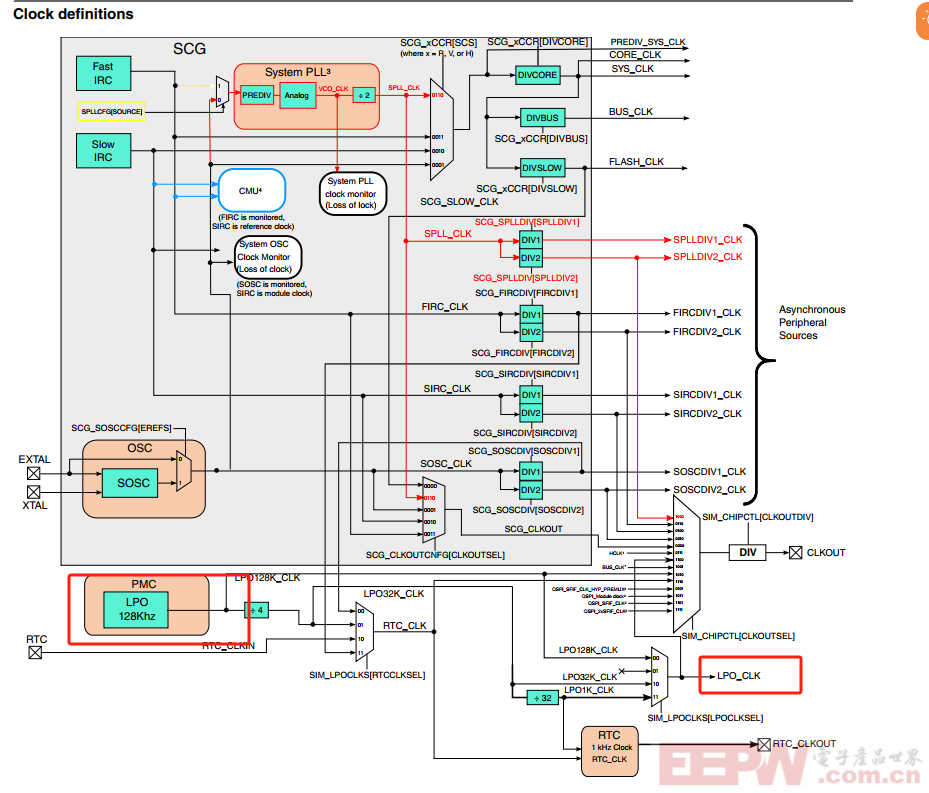

SCG(System Clock Generator) 主要用来配置系统层次的时钟配置，产生系统外设依赖的时钟输出配置
对应的配置内容如下
.scgConfig =
{
.sircConfig =
{
.initialize = true,
.enableInStop = true, /* Enable SIRC in stop mode */
.enableInLowPower = true, /* Enable SIRC in low power mode */
.locked = false, /* unlocked */
.range = SCG_SIRC_RANGE_HIGH, /* Slow IRC high range clock (8 MHz) */
.div1 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Slow IRC Clock Divider 1: divided by 1 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Slow IRC Clock Divider 3: divided by 1 */
},
.fircConfig =
{
.initialize = true,
.regulator = true, /* FIRC regulator is enabled */
.locked = false, /* unlocked */
.range = SCG_FIRC_RANGE_48M, /*!< RANGE */
.div1 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Fast IRC Clock Divider 1: divided by 1 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_1, /* Fast IRC Clock Divider 3: divided by 1 */
},
.rtcConfig =
{
.initialize = false,
},
.soscConfig =
{
.initialize = true,
.freq = 16000000U, /* System Oscillator frequency: 16000000Hz */
.monitorMode = SCG_SOSC_MONITOR_DISABLE,/* Monitor disabled */
.locked = false, /* SOSC disabled */
.extRef = SCG_SOSC_REF_OSC, /* Internal oscillator of OSC requested. */
.gain = SCG_SOSC_GAIN_LOW, /* Configure crystal oscillator for low-gain operation */
.range = SCG_SOSC_RANGE_HIGH, /* High frequency range selected for the crystal oscillator of 8 MHz to 40 MHz. */
.div1 = SCG_ASYNC_CLOCK_DIV_BY_1, /* System OSC Clock Divider 1: divided by 1 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_1, /* System OSC Clock Divider 3: divided by 1 */
},
.spllConfig =
{
.initialize = true,
.monitorMode = SCG_SPLL_MONITOR_DISABLE,/* Monitor disabled */
.locked = false, /* unlocked */
.prediv = (uint8_t)SCG_SPLL_CLOCK_PREDIV_BY_1,/* Divided by 1 */
.mult = (uint8_t)SCG_SPLL_CLOCK_MULTIPLY_BY_20,/* Multiply Factor is 20 */
.src = 0U,
.div1 = SCG_ASYNC_CLOCK_DIV_BY_2, /* System PLL Clock Divider 1: divided by 2 */
.div2 = SCG_ASYNC_CLOCK_DIV_BY_4, /* System PLL Clock Divider 3: divided by 4 */
},
.clockOutConfig =
{
.initialize = true,
.source = SCG_CLOCKOUT_SRC_FIRC, /* Fast IRC. */
},
.clockModeConfig =
{
.initialize = true,
.rccrConfig =
{
.src = SCG_SYSTEM_CLOCK_SRC_SYS_PLL,/* System PLL */
.divCore = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Core Clock Divider: divided by 2 */
.divBus = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Bus Clock Divider: divided by 2 */
.divSlow = SCG_SYSTEM_CLOCK_DIV_BY_4,/* Slow Clock Divider: divided by 4 */
},
.vccrConfig =
{
.src = SCG_SYSTEM_CLOCK_SRC_SIRC, /* Slow IRC */
.divCore = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Core Clock Divider: divided by 2 */
.divBus = SCG_SYSTEM_CLOCK_DIV_BY_1,/* Bus Clock Divider: divided by 1 */
.divSlow = SCG_SYSTEM_CLOCK_DIV_BY_4,/* Slow Clock Divider: divided by 4 */
},
.hccrConfig =
{
.src = SCG_SYSTEM_CLOCK_SRC_SYS_PLL,/* System PLL */
.divCore = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Core Clock Divider: divided by 2 */
.divBus = SCG_SYSTEM_CLOCK_DIV_BY_2,/* Bus Clock Divider: divided by 2 */
.divSlow = SCG_SYSTEM_CLOCK_DIV_BY_4,/* Slow Clock Divider: divided by 4 */
},
},
},从配置项目可以看出SCG包含了SIRC/FIRC/SOSC/PLL/CLKOUT及不同mode 下的时钟源的参数配置。
【PCC配置】
Peripheral Clock Controller (PCC) 对应外设的时钟配置，在系统时钟配置的基础上，选择外设的时钟源使用哪路系统时钟及外设时钟的gate是否开启以及分频倍频系数的配置，对应的配置如下：
peripheral_clock_config_t peripheralClockConfig0[NUM_OF_PERIPHERAL_CLOCKS_0] = {
{
.clockName = ADC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = ADC1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPSPI0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPSPI1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPSPI2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPUART0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SOSC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPUART1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SOSC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPUART2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SOSC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPI2C0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPIT0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = LPTMR0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM3_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM4_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTM5_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV1,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FLEXIO0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_SIRC_DIV2,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = CMP0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = CRC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = DMAMUX0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = EWM0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FTFC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PDB0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PDB1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = RTC0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FlexCAN0_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FlexCAN1_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = FlexCAN2_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTA_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTB_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTC_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTD_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
{
.clockName = PORTE_CLK,
.clkGate = true,
.clkSrc = CLK_SRC_OFF,
.frac = MULTIPLY_BY_ONE,
.divider = DIVIDE_BY_ONE,
},
};【SIM 配置】
System Integration Module (SIM),S32K146 的部分系统外设的gate 信号是在SIM模块进行配置的，向EIM/ERM/MPU/MSCM/DMA 等的时钟管理，对应配置如下
.simConfig =
{
.clockOutConfig =
{
.initialize = true, /*!< Initialize */
.enable = true, /* enabled */
.source = SIM_CLKOUT_SEL_SYSTEM_SCG_CLKOUT,/* SCG CLKOUT clock select: SCG slow clock */
.divider = SIM_CLKOUT_DIV_BY_1, /* Divided by 1 */
},
.lpoClockConfig =
{
.initialize = true, /*!< Initialize */
.enableLpo1k = true, /*!< LPO1KCLKEN */
.enableLpo32k = true, /*!< LPO32KCLKEN */
.sourceLpoClk = SIM_LPO_CLK_SEL_LPO_128K,/* 128 kHz LPO clock */
.sourceRtcClk = SIM_RTCCLK_SEL_FIRCDIV1_CLK,/* FIRCDIV1 clock */
},
.platGateConfig =
{
.initialize = true, /*!< Initialize */
.enableEim = true, /*!< CGCEIM */
.enableErm = true, /*!< CGCERM */
.enableDma = true, /*!< CGCDMA */
.enableMpu = true, /*!< CGCMPU */
.enableMscm = true, /*!< CGCMSCM */
},
.tclkConfig =
{
.initialize = false, /*!< Initialize */
},
.traceClockConfig =
{
.initialize = true, /*!< Initialize */
.divEnable = true, /*!< TRACEDIVEN */
.source = CLOCK_TRACE_SRC_CORE_CLK, /*!< TRACECLK_SEL */
.divider = 0U, /*!< TRACEDIV */
.divFraction = false, /*!< TRACEFRAC */
},
},【PMC配置】
Power Management Controller (PMC)，从PMC 的features 中可知，LPO的时钟有一路来自PMC输出
对应的框图如下
对应的配置结构体如下
.pmcConfig =
{
.lpoClockConfig =
{
.initialize = true, /*!< Initialize */
.enable = true, /*!< Enable/disable LPO */
.trimValue = 0, /*!< Trimming value for LPO */
},
},【时钟配置流程】

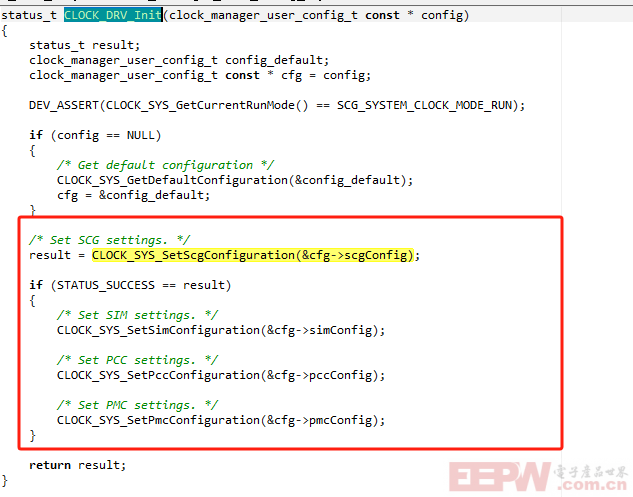

SDK 时钟配置通过
CLOCK_SYS_UpdateConfiguration->CLOCK_SYS_SetConfiguration->CLOCK_DRV_Init 完成时钟的配置，CLOCK_DRV_Init 函数中将上述的配置结构体内容进行设置从而完成时钟的配置。
我要赚赏金
STM32
MCU
通讯及无线技术
物联网技术
电子DIY
板卡试用
基础知识
软件与操作系统
我爱生活
小e食堂
