【简介】

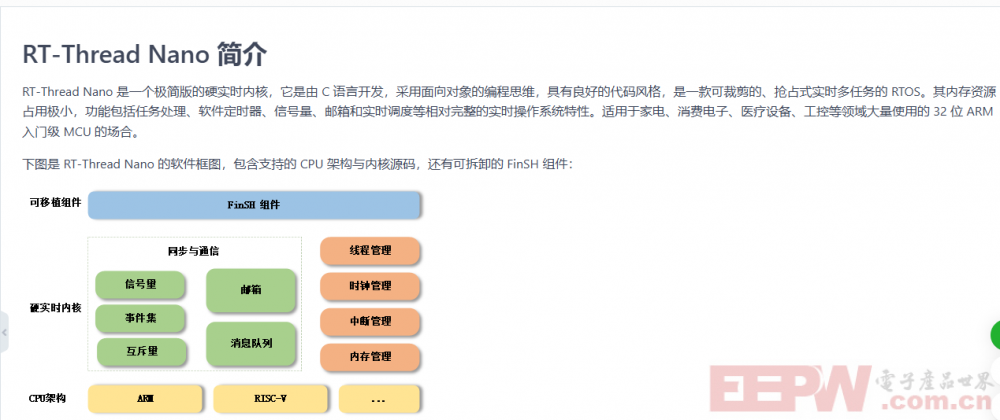

在上一篇中我们适配了Rt-thread nano（【STM32C092】使用STM32CubeMX适配 rt-thread nano），Rt-thread nano 版本里只包含了RTOS内核的及shell的代码，是无法直接使用Rt-thread 的其他功能组件的，以下是Rt-thread nano 的框图及说明。

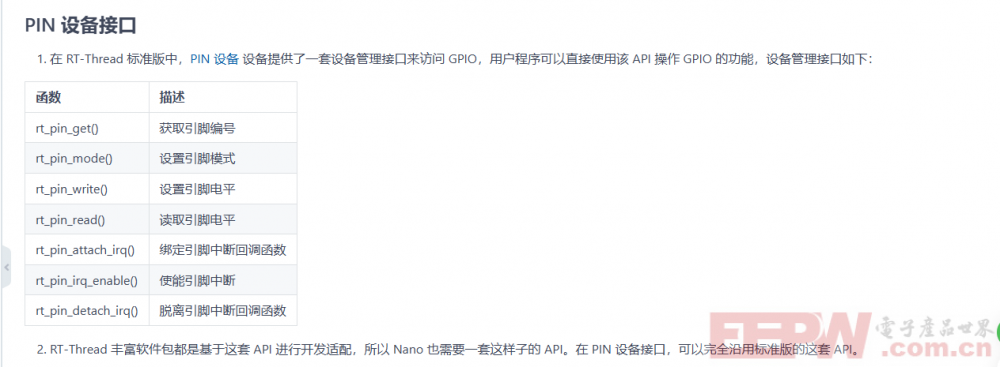

在Nano 中虽然不能直接使用标准版的驱动，不过我们把标准版中冗余的部分裁剪掉也是可以在nano 中来使用的，PIN驱动对外提供的接口如下。
我们将标准版中的驱动框架部分代码去除，只保留pin驱动相关代码。
#ifndef PIN_H__
#define PIN_H__
#include <rtthread.h>
#ifdef __cplusplus
extern "C" {
#endif
#define PIN_LOW 0x00
#define PIN_HIGH 0x01
#define PIN_MODE_OUTPUT 0x00
#define PIN_MODE_INPUT 0x01
#define PIN_MODE_INPUT_PULLUP 0x02
#define PIN_MODE_INPUT_PULLDOWN 0x03
#define PIN_MODE_OUTPUT_OD 0x04
#define PIN_IRQ_MODE_RISING 0x00
#define PIN_IRQ_MODE_FALLING 0x01
#define PIN_IRQ_MODE_RISING_FALLING 0x02
#define PIN_IRQ_MODE_HIGH_LEVEL 0x03
#define PIN_IRQ_MODE_LOW_LEVEL 0x04
#define PIN_IRQ_DISABLE 0x00
#define PIN_IRQ_ENABLE 0x01
#define PIN_IRQ_PIN_NONE -1
struct rt_device_pin_mode
{
rt_uint16_t pin;
rt_uint16_t mode;
};
struct rt_device_pin_status
{
rt_uint16_t pin;
rt_uint16_t status;
};
struct rt_pin_irq_hdr
{
rt_int16_t pin;
rt_uint16_t mode;
void (*hdr)(void *args);
void *args;
};
void rt_pin_mode(rt_base_t pin, rt_base_t mode);
void rt_pin_write(rt_base_t pin, rt_base_t value);
int rt_pin_read(rt_base_t pin);
rt_err_t rt_pin_attach_irq(rt_int32_t pin, rt_uint32_t mode,
void (*hdr)(void *args), void *args);
rt_err_t rt_pin_detach_irq(rt_int32_t pin);
rt_err_t rt_pin_irq_enable(rt_base_t pin, rt_uint32_t enabled);
/* Get pin number by name,such as PA.0,P0.12 */
rt_base_t rt_pin_get(const char *name);
#ifdef __cplusplus
}
#endif
#endif针对上述pin 驱动依赖的平台实现相关代码，标准版本中已经实现了，我们把其他其他芯片以来的去除只保留STM32C0芯片的代码，对应代码如下。
#include "main.h"
#include "pin.h"
#include "drv_gpio.h"
#include <rthw.h>
#ifdef RT_USING_PIN
#define PIN_NUM(port, no) (((((port) & 0xFu) << 4) | ((no) & 0xFu)))
#define PIN_PORT(pin) ((uint8_t)(((pin) >> 4) & 0xFu))
#define PIN_NO(pin) ((uint8_t)((pin) & 0xFu))
#define PIN_STPORT(pin) ((GPIO_TypeDef *)(GPIOA_BASE + (0x400u * PIN_PORT(pin))))
#define PIN_STPIN(pin) ((uint16_t)(1u << PIN_NO(pin)))
#define __STM32_PORT_MAX 8u
#define PIN_STPORT_MAX __STM32_PORT_MAX
static const struct pin_irq_map pin_irq_map[] =
{
{GPIO_PIN_0, EXTI0_1_IRQn},
{GPIO_PIN_1, EXTI0_1_IRQn},
{GPIO_PIN_2, EXTI2_3_IRQn},
{GPIO_PIN_3, EXTI2_3_IRQn},
{GPIO_PIN_4, EXTI4_15_IRQn},
{GPIO_PIN_5, EXTI4_15_IRQn},
{GPIO_PIN_6, EXTI4_15_IRQn},
{GPIO_PIN_7, EXTI4_15_IRQn},
{GPIO_PIN_8, EXTI4_15_IRQn},
{GPIO_PIN_9, EXTI4_15_IRQn},
{GPIO_PIN_10, EXTI4_15_IRQn},
{GPIO_PIN_11, EXTI4_15_IRQn},
{GPIO_PIN_12, EXTI4_15_IRQn},
{GPIO_PIN_13, EXTI4_15_IRQn},
{GPIO_PIN_14, EXTI4_15_IRQn},
{GPIO_PIN_15, EXTI4_15_IRQn},
};
static struct rt_pin_irq_hdr pin_irq_hdr_tab[] =
{
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
{-1, 0, RT_NULL, RT_NULL},
};
static uint32_t pin_irq_enable_mask = 0;
#define ITEM_NUM(items) sizeof(items) / sizeof(items[0])
rt_base_t stm32_pin_get(const char *name)
{
rt_base_t pin = 0;
int hw_port_num, hw_pin_num = 0;
int i, name_len;
name_len = rt_strlen(name);
if ((name_len < 4) || (name_len >= 6))
{
return -RT_EINVAL;
}
if ((name[0] != 'P') || (name[2] != '.'))
{
return -RT_EINVAL;
}
if ((name[1] >= 'A') && (name[1] <= 'Z'))
{
hw_port_num = (int)(name[1] - 'A');
}
else
{
return -RT_EINVAL;
}
for (i = 3; i < name_len; i++)
{
hw_pin_num *= 10;
hw_pin_num += name[i] - '0';
}
pin = PIN_NUM(hw_port_num, hw_pin_num);
return pin;
}
void rt_pin_write(rt_base_t pin, rt_base_t value)
{
GPIO_TypeDef *gpio_port;
uint16_t gpio_pin;
if (PIN_PORT(pin) < PIN_STPORT_MAX)
{
gpio_port = PIN_STPORT(pin);
gpio_pin = PIN_STPIN(pin);
HAL_GPIO_WritePin(gpio_port, gpio_pin, (GPIO_PinState)value);
}
}
int rt_pin_read(rt_base_t pin)
{
GPIO_TypeDef *gpio_port;
uint16_t gpio_pin;
int value = PIN_LOW;
if (PIN_PORT(pin) < PIN_STPORT_MAX)
{
gpio_port = PIN_STPORT(pin);
gpio_pin = PIN_STPIN(pin);
value = HAL_GPIO_ReadPin(gpio_port, gpio_pin);
}
return value;
}
void rt_pin_mode(rt_base_t pin, rt_base_t mode)
{
GPIO_InitTypeDef GPIO_InitStruct;
if (PIN_PORT(pin) >= PIN_STPORT_MAX)
{
return;
}
/* Configure GPIO_InitStructure */
GPIO_InitStruct.Pin = PIN_STPIN(pin);
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
if (mode == PIN_MODE_OUTPUT)
{
/* output setting */
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
}
else if (mode == PIN_MODE_INPUT)
{
/* input setting: not pull. */
GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
GPIO_InitStruct.Pull = GPIO_NOPULL;
}
else if (mode == PIN_MODE_INPUT_PULLUP)
{
/* input setting: pull up. */
GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
GPIO_InitStruct.Pull = GPIO_PULLUP;
}
else if (mode == PIN_MODE_INPUT_PULLDOWN)
{
/* input setting: pull down. */
GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
GPIO_InitStruct.Pull = GPIO_PULLDOWN;
}
else if (mode == PIN_MODE_OUTPUT_OD)
{
/* output setting: od. */
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_OD;
GPIO_InitStruct.Pull = GPIO_NOPULL;
}
HAL_GPIO_Init(PIN_STPORT(pin), &GPIO_InitStruct);
}
rt_inline rt_int32_t bit2bitno(rt_uint32_t bit)
{
int i;
for (i = 0; i < 32; i++)
{
if ((0x01 << i) == bit)
{
return i;
}
}
return -1;
}
rt_inline const struct pin_irq_map *get_pin_irq_map(uint32_t pinbit)
{
rt_int32_t mapindex = bit2bitno(pinbit);
if (mapindex < 0 || mapindex >= ITEM_NUM(pin_irq_map))
{
return RT_NULL;
}
return &pin_irq_map[mapindex];
};
rt_err_t rt_pin_attach_irq(rt_int32_t pin, rt_uint32_t mode, void (*hdr)(void *args), void *args)
{
rt_base_t level;
rt_int32_t irqindex = -1;
if (PIN_PORT(pin) >= PIN_STPORT_MAX)
{
return -RT_ENOSYS;
}
irqindex = bit2bitno(PIN_STPIN(pin));
if (irqindex < 0 || irqindex >= ITEM_NUM(pin_irq_map))
{
return RT_ENOSYS;
}
level = rt_hw_interrupt_disable();
if (pin_irq_hdr_tab[irqindex].pin == pin &&
pin_irq_hdr_tab[irqindex].hdr == hdr &&
pin_irq_hdr_tab[irqindex].mode == mode &&
pin_irq_hdr_tab[irqindex].args == args)
{
rt_hw_interrupt_enable(level);
return RT_EOK;
}
if (pin_irq_hdr_tab[irqindex].pin != -1)
{
rt_hw_interrupt_enable(level);
return RT_EBUSY;
}
pin_irq_hdr_tab[irqindex].pin = pin;
pin_irq_hdr_tab[irqindex].hdr = hdr;
pin_irq_hdr_tab[irqindex].mode = mode;
pin_irq_hdr_tab[irqindex].args = args;
rt_hw_interrupt_enable(level);
return RT_EOK;
}
rt_err_t rt_pin_detach_irq(rt_int32_t pin)
{
rt_base_t level;
rt_int32_t irqindex = -1;
if (PIN_PORT(pin) >= PIN_STPORT_MAX)
{
return -RT_ENOSYS;
}
irqindex = bit2bitno(PIN_STPIN(pin));
if (irqindex < 0 || irqindex >= ITEM_NUM(pin_irq_map))
{
return RT_ENOSYS;
}
level = rt_hw_interrupt_disable();
if (pin_irq_hdr_tab[irqindex].pin == -1)
{
rt_hw_interrupt_enable(level);
return RT_EOK;
}
pin_irq_hdr_tab[irqindex].pin = -1;
pin_irq_hdr_tab[irqindex].hdr = RT_NULL;
pin_irq_hdr_tab[irqindex].mode = 0;
pin_irq_hdr_tab[irqindex].args = RT_NULL;
rt_hw_interrupt_enable(level);
return RT_EOK;
}
rt_err_t rt_pin_irq_enable(rt_base_t pin, rt_uint32_t enabled)
{
const struct pin_irq_map *irqmap;
rt_base_t level;
rt_int32_t irqindex = -1;
GPIO_InitTypeDef GPIO_InitStruct;
if (PIN_PORT(pin) >= PIN_STPORT_MAX)
{
return -RT_ENOSYS;
}
if (enabled == PIN_IRQ_ENABLE)
{
irqindex = bit2bitno(PIN_STPIN(pin));
if (irqindex < 0 || irqindex >= ITEM_NUM(pin_irq_map))
{
return RT_ENOSYS;
}
level = rt_hw_interrupt_disable();
if (pin_irq_hdr_tab[irqindex].pin == -1)
{
rt_hw_interrupt_enable(level);
return RT_ENOSYS;
}
irqmap = &pin_irq_map[irqindex];
/* Configure GPIO_InitStructure */
GPIO_InitStruct.Pin = PIN_STPIN(pin);
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
switch (pin_irq_hdr_tab[irqindex].mode)
{
case PIN_IRQ_MODE_RISING:
GPIO_InitStruct.Pull = GPIO_PULLDOWN;
GPIO_InitStruct.Mode = GPIO_MODE_IT_RISING;
break;
case PIN_IRQ_MODE_FALLING:
GPIO_InitStruct.Pull = GPIO_PULLUP;
GPIO_InitStruct.Mode = GPIO_MODE_IT_FALLING;
break;
case PIN_IRQ_MODE_RISING_FALLING:
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Mode = GPIO_MODE_IT_RISING_FALLING;
break;
}
HAL_GPIO_Init(PIN_STPORT(pin), &GPIO_InitStruct);
HAL_NVIC_SetPriority(irqmap->irqno, 5, 0);
HAL_NVIC_EnableIRQ(irqmap->irqno);
pin_irq_enable_mask |= irqmap->pinbit;
rt_hw_interrupt_enable(level);
}
else if (enabled == PIN_IRQ_DISABLE)
{
irqmap = get_pin_irq_map(PIN_STPIN(pin));
if (irqmap == RT_NULL)
{
return RT_ENOSYS;
}
level = rt_hw_interrupt_disable();
HAL_GPIO_DeInit(PIN_STPORT(pin), PIN_STPIN(pin));
pin_irq_enable_mask &= ~irqmap->pinbit;
if ((irqmap->pinbit >= GPIO_PIN_5) && (irqmap->pinbit <= GPIO_PIN_9))
{
if (!(pin_irq_enable_mask & (GPIO_PIN_5 | GPIO_PIN_6 | GPIO_PIN_7 | GPIO_PIN_8 | GPIO_PIN_9)))
{
HAL_NVIC_DisableIRQ(irqmap->irqno);
}
}
else if ((irqmap->pinbit >= GPIO_PIN_10) && (irqmap->pinbit <= GPIO_PIN_15))
{
if (!(pin_irq_enable_mask & (GPIO_PIN_10 | GPIO_PIN_11 | GPIO_PIN_12 | GPIO_PIN_13 | GPIO_PIN_14 | GPIO_PIN_15)))
{
HAL_NVIC_DisableIRQ(irqmap->irqno);
}
}
else
{
HAL_NVIC_DisableIRQ(irqmap->irqno);
}
rt_hw_interrupt_enable(level);
}
else
{
return -RT_ENOSYS;
}
return RT_EOK;
}
rt_inline void pin_irq_hdr(int irqno)
{
if (pin_irq_hdr_tab[irqno].hdr)
{
pin_irq_hdr_tab[irqno].hdr(pin_irq_hdr_tab[irqno].args);
}
}
void HAL_GPIO_EXTI_Rising_Callback(uint16_t GPIO_Pin)
{
pin_irq_hdr(bit2bitno(GPIO_Pin));
}
void HAL_GPIO_EXTI_Falling_Callback(uint16_t GPIO_Pin)
{
pin_irq_hdr(bit2bitno(GPIO_Pin));
}
void EXTI0_1_IRQHandler(void)
{
rt_interrupt_enter();
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_0);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_1);
rt_interrupt_leave();
}
void EXTI2_3_IRQHandler(void)
{
rt_interrupt_enter();
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_2);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_3);
rt_interrupt_leave();
}
void EXTI4_15_IRQHandler(void)
{
rt_interrupt_enter();
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_4);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_5);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_6);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_7);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_8);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_9);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_10);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_11);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_12);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_13);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_14);
HAL_GPIO_EXTI_IRQHandler(GPIO_PIN_15);
rt_interrupt_leave();
}
int rt_hw_pin_init(void)
{
#if defined(__HAL_RCC_GPIOA_CLK_ENABLE)
__HAL_RCC_GPIOA_CLK_ENABLE();
#endif
#if defined(__HAL_RCC_GPIOB_CLK_ENABLE)
__HAL_RCC_GPIOB_CLK_ENABLE();
#endif
#if defined(__HAL_RCC_GPIOC_CLK_ENABLE)
__HAL_RCC_GPIOC_CLK_ENABLE();
#endif
#if defined(__HAL_RCC_GPIOE_CLK_ENABLE)
__HAL_RCC_GPIOE_CLK_ENABLE();
#endif
return RT_EOK;
}
INIT_BOARD_EXPORT(rt_hw_pin_init);

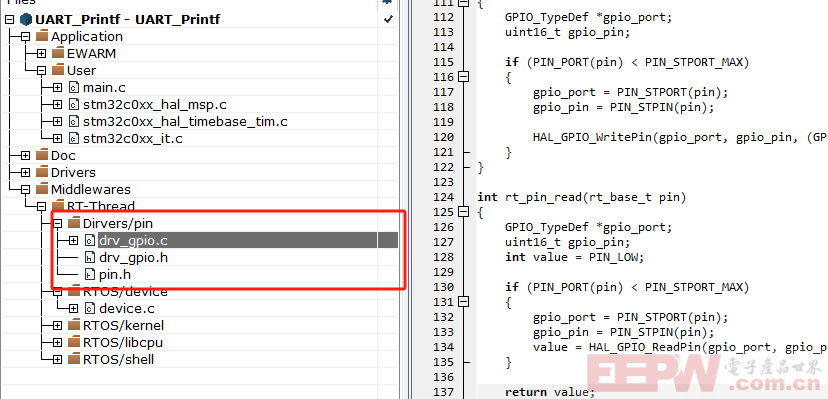

#endif /* RT_USING_PIN */将上述代码加入工程编译，就可以使用标准版本的PIN驱动接口操作GPIO了。

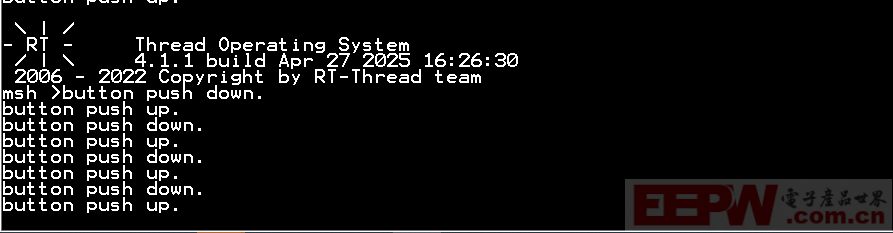

适配好PIN驱动代码后，本地添加如下的测试代码，来验证PIN驱动功能。

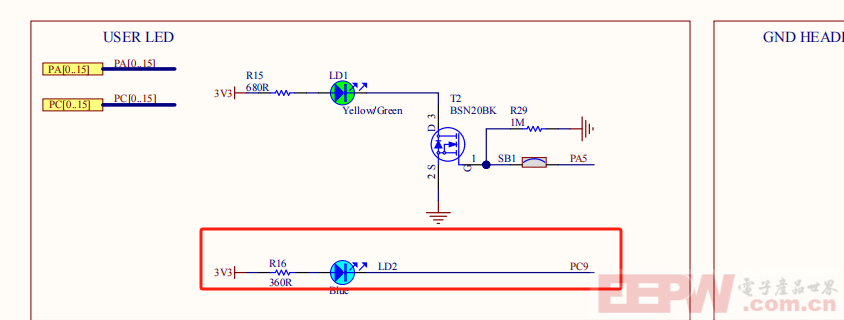

#define LED_BLUE_PIN GET_PIN(C, 9)

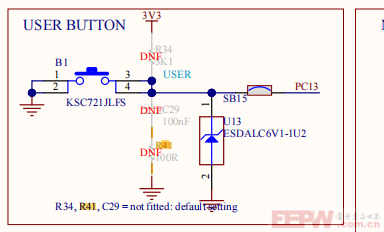

#define USER_BTN GET_PIN(C, 13)
void but_callback(void * arg)
{
if(rt_pin_read(USER_BTN))
rt_kprintf("button push up.\n");
else
rt_kprintf("button push down.\n");
}
int main(void)
{
/* Infinite loop */
/* USER CODE BEGIN WHILE */
rt_pin_mode(LED_BLUE_PIN, PIN_MODE_OUTPUT);
rt_pin_mode(LED_GREEN_PIN, PIN_MODE_OUTPUT);
rt_pin_attach_irq(USER_BTN,PIN_IRQ_MODE_RISING_FALLING,but_callback,NULL);
rt_pin_irq_enable(USER_BTN,PIN_IRQ_ENABLE);
rt_pin_mode(USER_BTN, PIN_MODE_INPUT_PULLUP);
while (1)
{
rt_pin_write(LED_BLUE_PIN, PIN_HIGH);
rt_thread_mdelay(500);
rt_pin_write(LED_BLUE_PIN, PIN_LOW);
rt_thread_mdelay(500);
}
/* USER CODE END 3 */
}按照原理图的引脚，上述代码配置PC13 为输入引脚，配置为双边沿中断触发方式。
运行后按键按下抬起 中断程序按照预期的进行了响应。
配置PC9为输出功能来控制板子的LED点亮熄灭，运行后LED按照0.5s的周期闪烁,说明 PIN 驱动GPIO输出功能正常。
STM32
MCU
通讯及无线技术
物联网技术
电子DIY
板卡试用
基础知识
软件与操作系统
我爱生活
小e食堂
